SECOH pumps

Advantages JDK-series

The JDK-models feature less energy consumption (up to 30% - depending on the application) and less overall dimensions (also by about 30%) compared to the SLL- and EL-series. This makes the class not only more compactly, but also lighter.

Long life expectancy
Motor and pump parts are combined in one single construction. The compact and light construction form and the simple mechanism guarantee a long and reliable period of operation.

High degree of efficiency
The principle of electromagnetic oscillation, which practically has no mechanical friction, minimizes power consumption and provides a high degree of efficiency.

Low noise level
The soundproof casing and the muffler integrated in the tank base reduce operating noise. Low vibration Motor and pump parts are separated by a vibration-isolating rubber, so only low vibration consists.

Completely oil-free
The oil-free operation guarantees a dry and unadulterated air flow. Pulsation-free air flow Specially formed pump chambers and the muffler integrated in the tank base provide an air flow, which is practically pulsation-free.

Weatherproof
All series with a housing (SLL, EL, JDK) are rainproof and weatherproof. However, they should not be exposed to direct sunlight, rain or snow.

Universal service kits
For each model series service kits are available. They are vacuum-packed in aluminum foil for better and longer life/storage.

Applications
•Water treatment and environmental technology
•Aquaculture
•Medical and health technology
•Aeration of fuel cell stacks
•Aqua-air-lights and design pillars

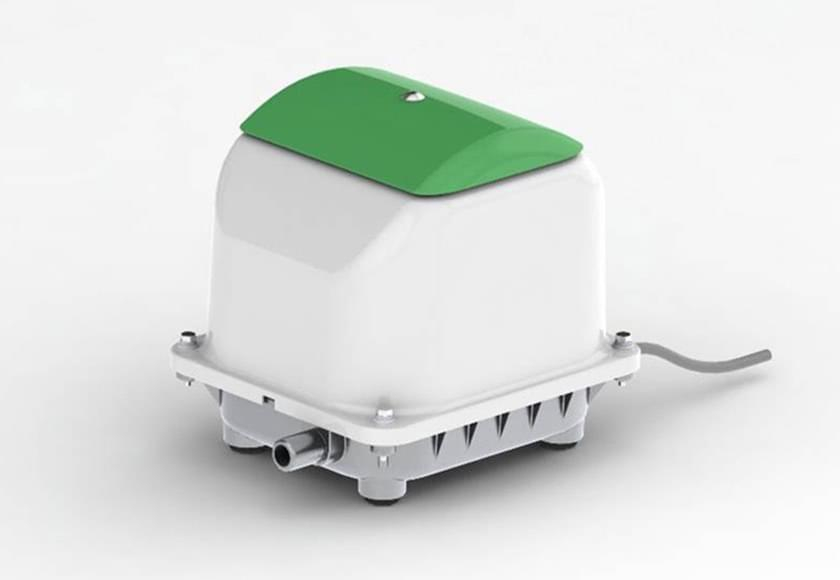

Product characteristics series JDK-20, JDK-30, JDK-40 and JDK-50
•Compact design
•Low energy consumption
•High quality plastic housing
•Connecting hose included in delivery

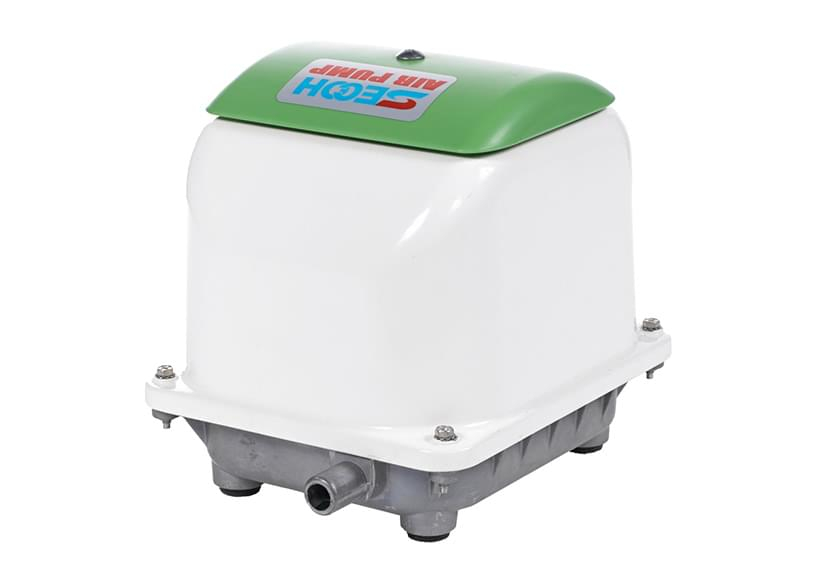

Product characteristics series JDK-S-60, JDK-S-80, JDK-S-100 and JDK-S-120
•Compact design
•Low energy consumption
•Protective switch inclusive
•Optional with signal cable
•Connecting hose included in delivery
•metal housing

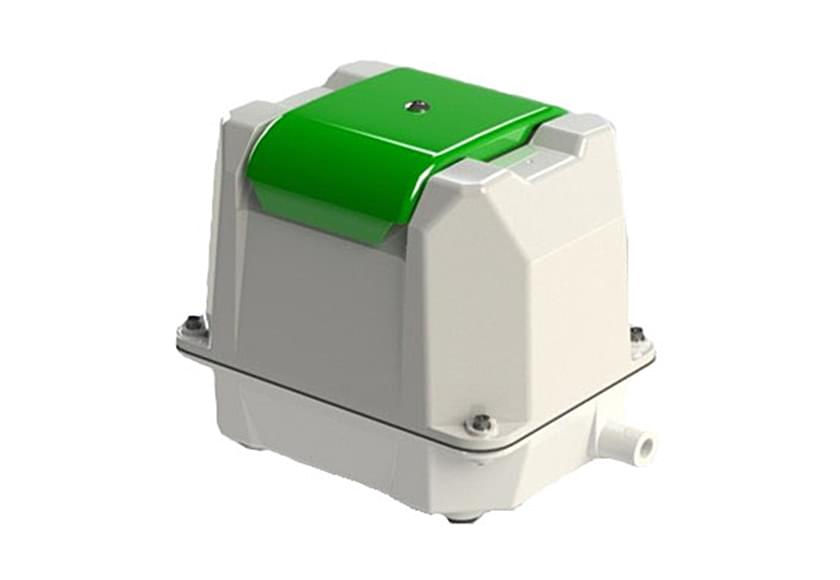

Product characteristics series JDK-150, JDK-200, JDK-250, JDK-300, JDK-400 and JDK-500
•Compact design
•Low energy consumption
•High quality metal housing
