Clamping elements/pneumatic

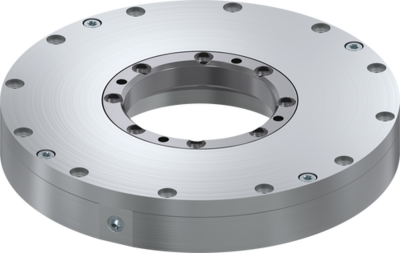

Series TPS

  • Independent of the manufacturer for circular guides and shaft guides
  • Energize to open (NC) through spring-loaded energy storage
  • High durability
  • Up to 5 million static clamping cycles
  • Safety element
  • Safe clamping in case of energy failure

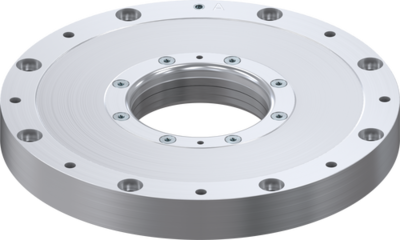

Series DKPS1000

  • High holding forces without additional air
  • Increased safety due to safeguarding of the rotation axis
  • Simple state query
  • Efficient and fast process flow
  • Market leading cycles
  • Leakage-free thanks to proven piston seal

Clamping elements/hydraulic

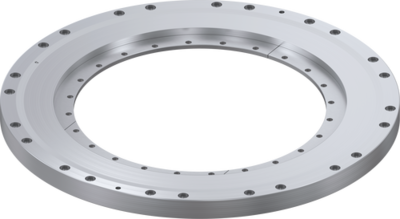

Series DKHS1000

  • Highest accuracy in rotational axis
  • No moving functional parts and therefore backlash-free Drive can be taken out of the drive control
  • Fastest reaction time and pressureless safety function
  • Due to a low displacement volume and internal stress of the housing
  • Market leading cycles
  • Housing strain stays below the elastic fatigue limit
