Electronic Pressure Transmitters/Transducers ESI

HISPEC (high specification transducers)
GENSPEC (general purpose transducers & transmitters)
PROTRAN (standard transmitters, DP transmitters, depth & level, barrier seals, industrial transmitters, oil & gas transmitters, subsea transmitters)
DEFTRAN (military specification transducers & transmitters)
PANEL METERS (plug-on-display, meters & alarms)
ACCESSRIES (valves, connectors, cable, pressure limiting valves, adaptors & fittings)

GD4200-USB

Dynamic Pressure Transducer

  • Sample rate software selection up to 1,000 Hz
  • Silicon-on-Sapphire pressure sensor technology
  • Choice of pressure ranges from vacuum to 5,000 bar
  • Accuracy (NLHR) ±0.15% of span BFSL
  • Auto detect and configuration
  • USB 2.0 compatible
  • ESI-USB© downloadable software with auto update
  • Measure & record up to 16 pressure inputs in one test
  • Create customised test certificates
  • Automatic temperature compensation
  • Support for easy integration with applications created by C#, VB, Labview and Excel VBA (api dll library)
  • 2m lead & carry case included

GS4000

Series General Purpose Pressure Transmitters

  • Suitable for the majority of industrial applications
  • Pressure ranges available from 0-500 mbar to 0-700 bar
  • Gauge or Absolute reference
  • Reliable pressure measurement
  • Long service life
  • Robust yet compact designs

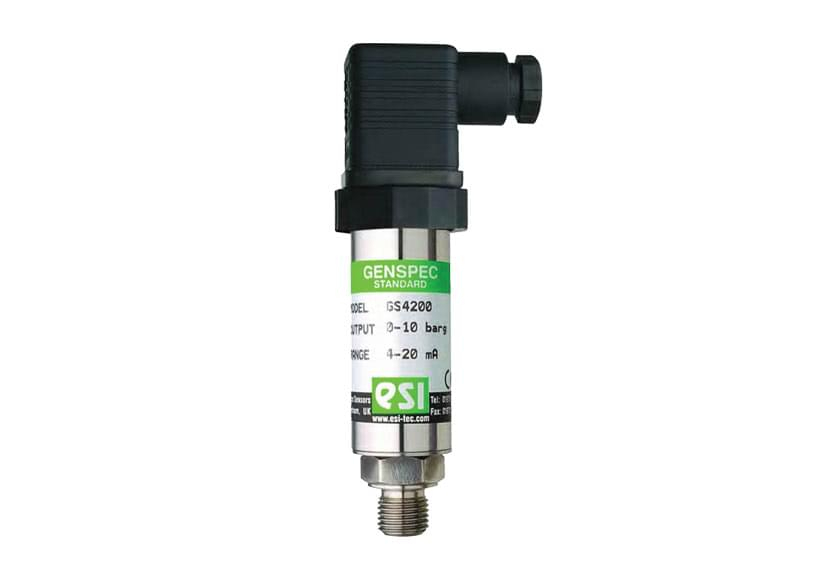

GS4200

Series General Purpose Pressure Transmitter

  • Silicon-on-Sapphire sensor technology for outstanding performance
  • Pressure ranges to 1,500 bar
  • Unblemished track record of reliability
  • Excellent corrosion resistance
  • High strength titanium pressure port
  • High resistance to overpressure and pressure transients
  • ATEX/IECEx option available (includes M1 for mining applications)
  • DNV GL approved for Marine applications

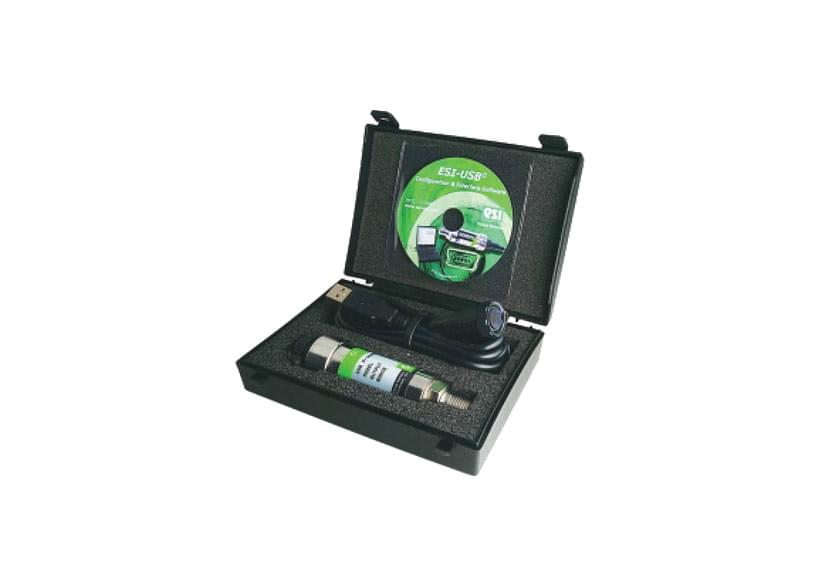

GS4200-USB

Digital Pressure Transducer

  • USB powered digital pressure transducer
  • Silicon-on-Sapphire sensor technology
  • Choice of pressure ranges from vacuum to 4,000 bar
  • Accuracy 0.15% NLHR
  • Auto detection and configuration
  • USB 2.0 compatible
  • ESI-USB© downloadable software with auto update
  • Measure & record up to 16 pressure inputs together
  • Automatic temperature compensation
  • Create customised test certificates
  • Support for easy integration with applications created by C#, VB, Labview and Excel VBA (API .dll library)
  • 2m lead & carry case included

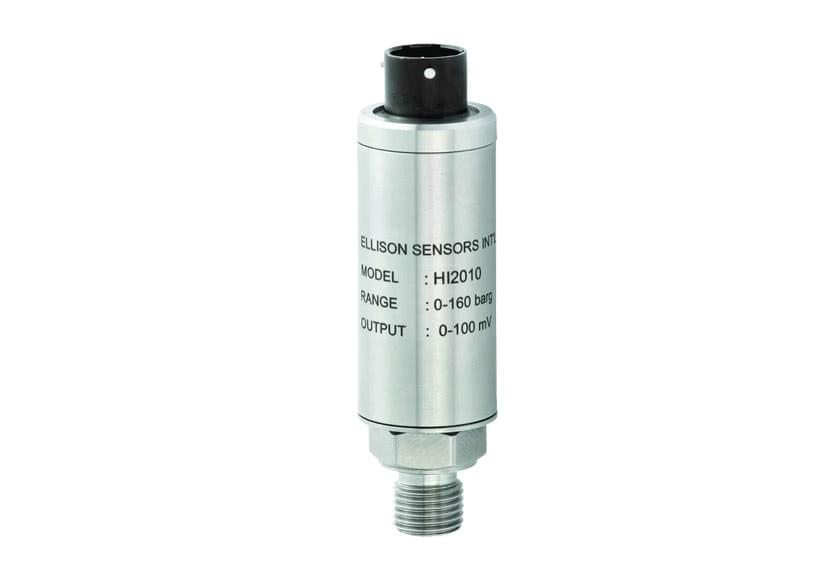

HI2000

High Specification Pressure Transducer

  • High accuracy and performance
  • Silicon-on-Sapphire sensor technology for outstanding stability
  • Pressure ranges to 1,500 bar
  • Titanium wetted parts for excellent chemical compatibility
  • High thermal stability over wide operating temperature
  • ATEX/IECEx option available (includes M1 for mining applications)

HI2200

High Temperature Pressure Transducer

  • High operating and ambient temperatures of up to 200°C
  • Pressure ranges to 1,500 bar
  • High accuracy
  • Temperature compensated option
  • Good chemical compatibility for a range of applications
  • A range of electrical and process connections available

HI3000 TEDS

High Specification TEDS Pressure Transducer


A TEDS (Transducer Electronic Data Sheet) version of the HI2000 series is now available.

HI5000

Downhole Pressure Transmitter

HI5000 pressure transmitter for oil & gas downhole tool applications.

HI6000

High Temperature Pressure Transmitter

The HI6000 pressure transmitter series performs at constant media and ambient temperatures of up to 135°C and for limited periods up to 150°C. The compensated temperature range is from -25°C to +135°C.

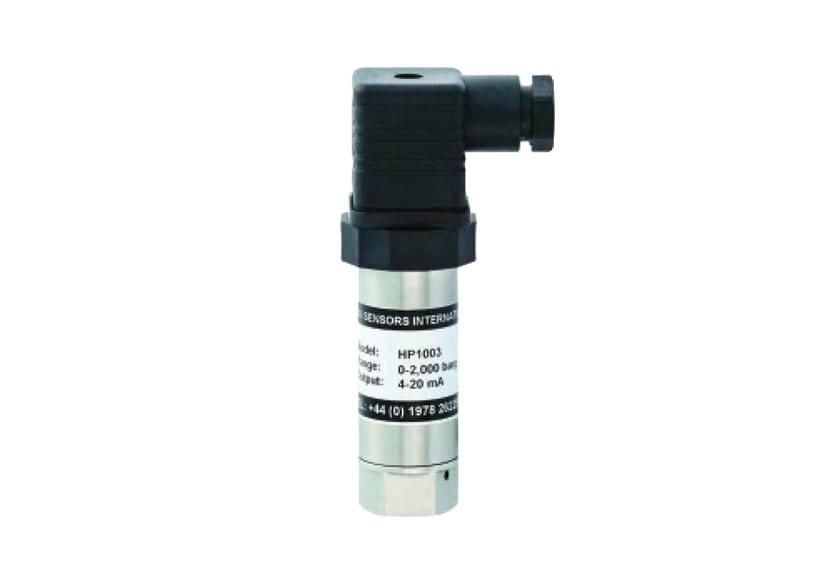

HP1000

Series High Pressure Transmitter

  • Pressure ranges to 5,000 bar
  • High pressure integrity for safe use due to unique sensor design
  • Pressure diaphragm and process connection is machined from one piece of Titanium with no seals or welds
  • High resistance to overpressure and pressure transients
  • Silicon-on-Sapphire (SOS) sensor technology for outstanding performance and reliability
  • ATEX/IECEx option available (includes M1 for mining applications) for 4-20 mA versions
  • DNV GL approved

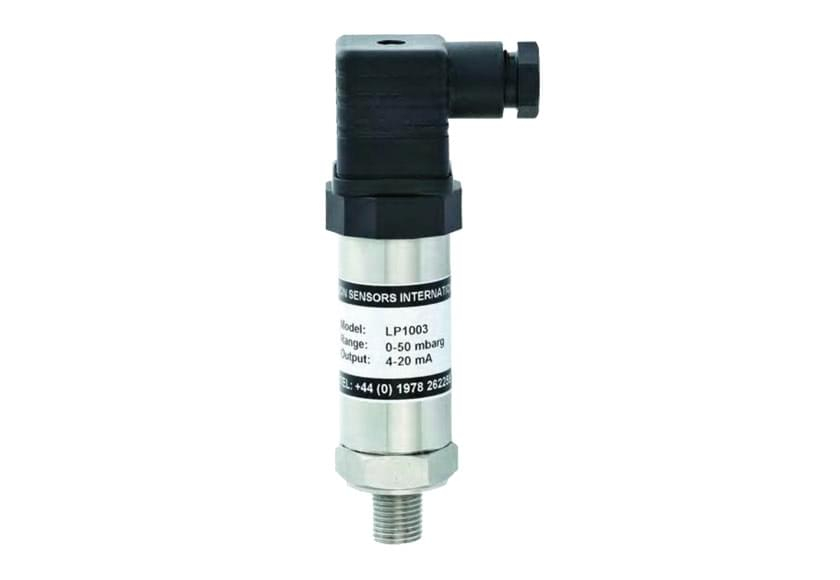

LP1000

Low Pressure Transmitter

  • Piezoresistive sensor technology for high performance
  • Low pressure measurement from 50 mbar
  • Robust stainless steel construction for durabilityLow hysteresis and excellent long term stabilityWide operating temperatureOn-site zero and span adjustment



PR3100

Standard Industrial Pressure Transmitter

  • Suitable for the majority of industrial applications
  • Pressure ranges available from 0-2.5 bar to 0-1,000 bar
  • Reliable pressure measurement
  • Long service life
  • Robust yet compact designs
  • ATEX/IECEx option available, including M1 for mining applications

PR3110EX

Low Pressure Intrinsically Safe Transmitter

  • ATEX and IECEx certified
  • Designed for operation in zone 0, zone 20 and M1 mining
  • Wide choice of low pressure ranges from 0-100 mbar
  • Available in Absolute and Gauge reference
  • Ideal for low pressure fluid and gas applications
  • DNV GL approved

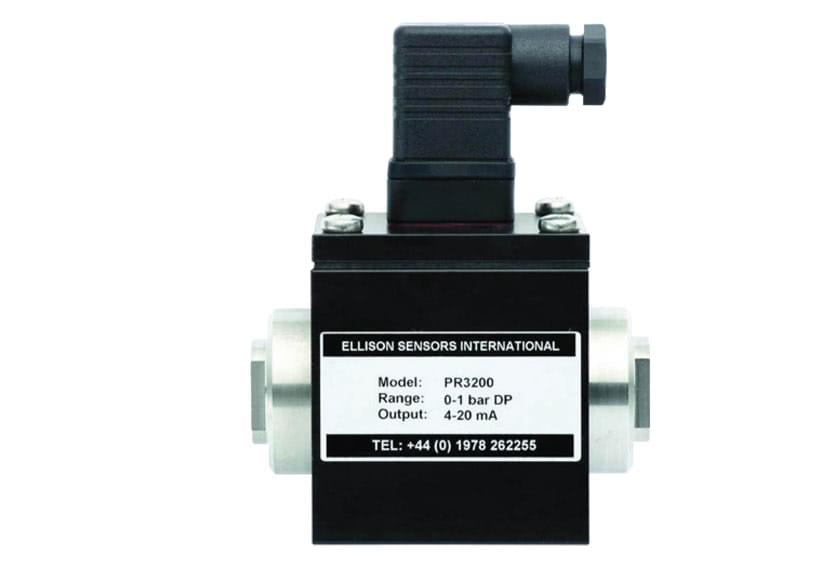

PR3200

High Pressure Differential Transmitter

  • Wide range of pressure ranges to 200 bar DP
  • WET/WET or DRY/DRY operation
  • Available for gauge reference or bi-directional measurement
  • Durable designs for industrial and commercial installations
  • R.F.I. Shielded for protection against electromagnetic radiation
  • ATEX/IECEx option available (includes M1 for mining applications)

PR3202

Low Pressure Differential

  • Wide range of low pressure ranges from 0-5 mbar
  • Available for gauge reference or bi-directional measurement
  • Durable designs for industrial and commercial installations
  • ATEX/IECEx option available (includes M1 for mining applications)

PR3420

Submersible Depth & Level Pressure Transmitter with Sludge Platform

  • Sludge Platform to raise sensor above sediment level
  • Piezoresistive sensor technology for excellent stability and repeatability
  • Robust stainless steel construction
  • Reliable pressure measurement
  • Pressure ranges available from 0-1 mWG
  • High strength, moulded cable for protection against ingress
  • ATEX/IECEx option available (includes M1 for mining applications)

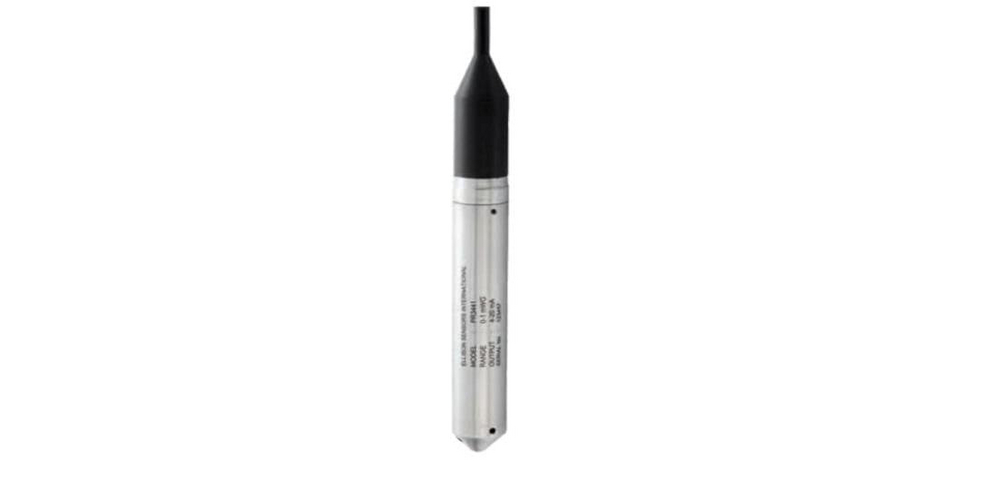

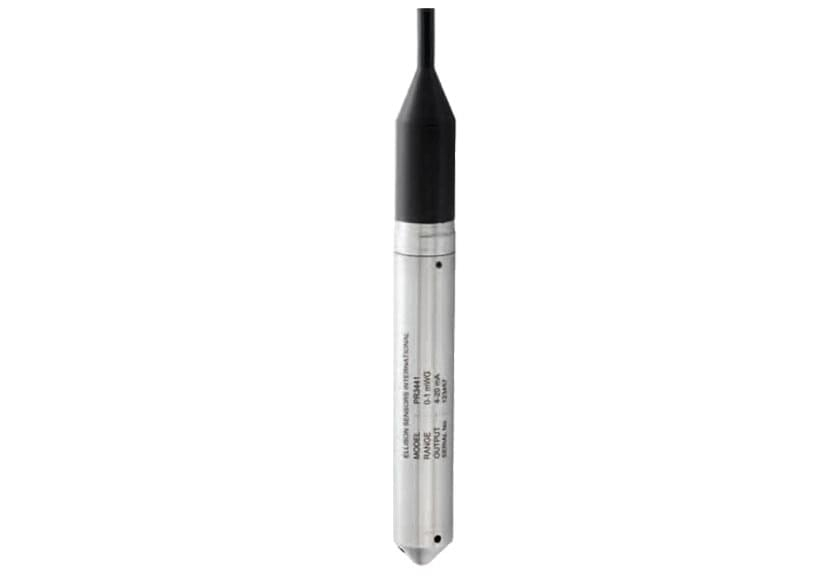

PR3441

Submersible Depth & Level Pressure Transmitter

  • Piezoresistive sensor technology for excellent stability and repeatability
  • Robust stainless steel construction
  • Pressure ranges available from 0-1 mWG
  • High strength, moulded cable for protection against ingress
  • ATEX/IECEx option available (includes M1 for mining applications)
  • DNV GL Approved



PR3442

Slim Submersible Depth & Level Pressure Transmitter

  • Slimline 16 mm diameter
  • Piezoresistive sensor technology for excellent stability and repeatability
  • Robust stainless steel construction
  • Pressure ranges available from 0-50 mWG
  • High strength, moulded cable for protection against ingress

PR3800

Flush Diaphragm Pressure Transmitter

  • Easy clean flush membrane to prevent clogging
  • Thick film sensor technology for long service life
  • Pressure ranges to 40 bar
  • Range of sanitary grade pressure fittings
  • ATEX/IECEx option available (includes M1 for mining applications)

PR3850

Flush Diaphragm Pressure Transmitter

  • Easy clean flush membrane to prevent clogging
  • Thick film sensor technology for long service life
  • Pressure ranges to 400 bar
  • Integral O-ring seal to ensure flush pressure seal
  • ATEX/IECEx option available (includes M1 for mining applications)

PR3860

High Temperature Flush Diaphragm Pressure Transmitter

  • High operating temperatures of up to 250°C
  • Easy clean flush membrane to prevent clogging
  • Thick film sensor technology for long service life
  • Pressure ranges to 400 bar
  • Good chemical compatibility for a range of applications
  • Integral O-ring seal option to ensure flush pressure seal
  • ATEX/IECEx option available (includes M1 for mining applications)

PR3900

Hazardous Area Pressure Transmitter

  • ATEX and IECEx certified
  • Designed for operation in zone 0, zone 20 and M1 mining
  • Wide choice of pressure ranges from 0-10 bar to 0-1,500 bar
  • NACE corrosion resistant materials
  • Rugged, weatherproof design
  • DNV GL Approved

PR3913

Subsea Control Valve Pressure Transmitter

  • Silicon-on-Sapphire sensor technology for outstanding performance
  • Submersion to 3,000 mtrs sea level
  • Pressure ranges available to 1,000 bar
  • High accuracy option
  • Hyperbaric testing to 3,300 m depth
  • Environmental Stress Screening (ESS Testing)
  • Suitable for ROV and deep sea test equipment
  • Comprehensive documentation package and certification
  • ATEX/IECEx option available (includes M1 for mining applications)

PR3914

Subsea Pressure Transmitter

  • Suitable for ROV and deep sea test equipment
  • Silicon-on-Sapphire sensor technology for outstanding performance
  • Submersion to 6,000 mtrs depth
  • Pressure ranges available to 2,000 bar
  • High accuracy option
  • Optional temperature output
  • Hyperbaric testing
  • ESS Testing and comprehensive document packages available

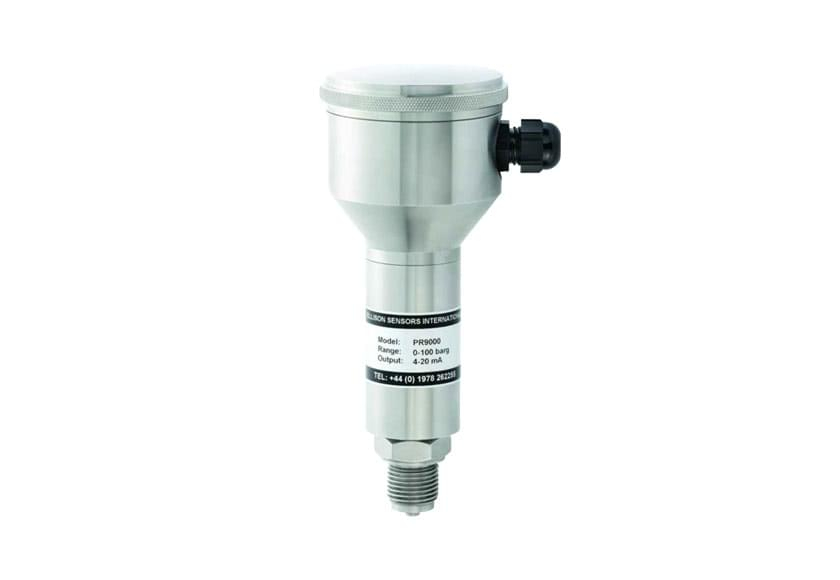

PR9000

Heavy Duty Pressure Transmitter

  • Silicon-on-Sapphire sensor technology for outstanding performance and reliability
  • Pressure ranges up to 1,500 bar
  • All stainless steel, robust construction for harsh environments
  • Wetted parts in various materials
  • ATEX/IECEx option available, including M1 for mining applications

PR9500

Wireless Duty Pressure Transmitter

  • Wireless for lower installation cost and maintenance
  • Silicon-on-Sapphire sensor technology for outstanding performance and reliability
  • Pressure ranges up to 1,500 bar
  • All stainless steel, robust construction for harsh environments
  • Wetted parts in various materials
  • Paired with RX9500 radio receiver
