Solenoid Valves 720 Series

The Pneumatic Solenoid Valves 720 Series are available in both NC and NO version. They include all innovations, which are present in Matrix solenoid valves, both in materials and operating principles. They couple simplicity and reliability with high dynamic performance. Response times are of milli-seconds range, while their operating life is over 500 million cycles. The series comprises vacuum versions designed for uses with vacuum technique.
Due to the facility to be speed-up controlled, dynamic characteristics become even more improved: standard solenoid valves equipped with 24 VDC control present response times lower than 5 ms in opening and 2 ms in closing, with a maximum operation frequency 200 Hz. On the contrary, solenoid valves equipped with speed-up control present a response time both in opening and closing lower than 2 ms, with a maximum operation frequency 300 Hz.
Besides high-speed characteristics, solenoid valves 720 Series offer flow rate value to 100 l/minute (ANR), with supply pressure from 0 to 8 bar.
720 Series is available both in line assembly version and on sub-plate and is equipped with a range of accessories such as multi-position manifolds and speed-up driver boards.

Advantages

  • Compact dimension
  • High duct diameter and flow rate
  • Short response times
  • Insensitivity to frequency work and to vibrations
  • Low absorbed power
  • Precision, repetitiveness and flexibility
  • Long operating life

Applications

  • Process and precision instrumentation
  • Pressure and flow rate control devices
  • Positioning systems
  • Selection systems
  • Metering systems
  • Biomedical and measure sector
  • Industrial automation

Materials

  • Body in PPS
  • Flanges in Al
  • Seals in NBR (shutters in HNBR on request)

Matrix Valve, Series 720

2/2 or 3/2 Function NC or NO

Single valve and manifold version

  • Flowrate              50-100 Nl./min.
  • Pressure range    0-8 bar or Vacuum 10-5 Torr
  • IP Rating             IP62
  • Response time     from 2 ms
  • Tension               12 VDC; 24 VDC; Speed-Up!
  • Life time              >500 million cycles
  • Measurements     12x41x39,5 mm
  • Weight                35 g

Managing director

Aleksandra Klemenc
Tel. +386 2 673 01 33
akl@inoteh.si

Sales & technical support

Gregor Podlogar
Tel. +386 2 673 01 34
gp@inoteh.si
loading...

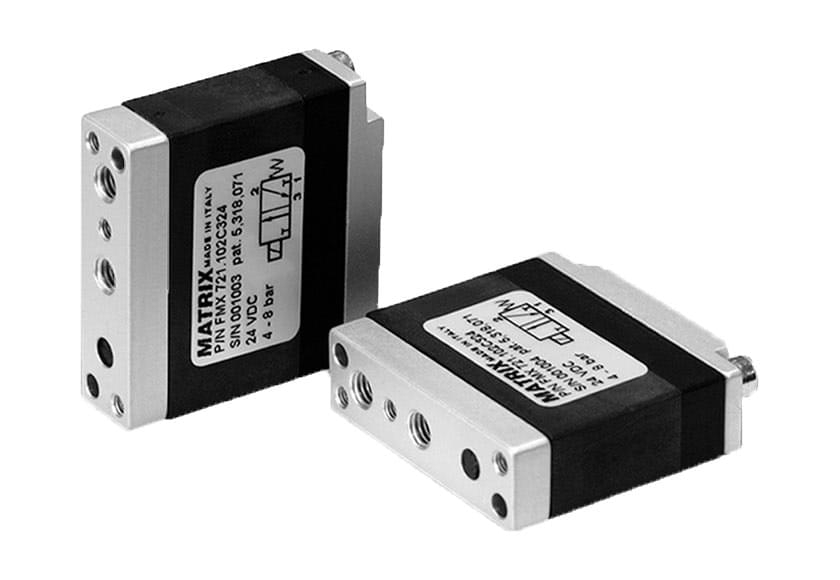

  • Matrix series 720 high speed valve
