Matrix valve, series 890

Superbly crafted, this series is an upgraded version of the existing 850 series. These valves are 2-position, 2-way valves with a total flow of 1620 LPM or 57 SCFM. Ideally suited for high speed sorting applications for their quick response [ < 1 mS] and long life [ 500 million cycles] these valves are capable of high performance at 800hz. Special configurations can meet requirements of 1000 + Hz and response times of 0.25 mS. Like all Matrix valves, they do not deviate in performance throughout their life and their repeatability makes them the valve of choice for high speed sorting of everything from grains to e-waste.

Advantages

  • Compact dimension
  • Extreme short response times
  • High frequency and PFM / PWM control
  • Insensitivity to vibrations
  • Low power consumption
  • High precision and repetitiveness
  • Long operating life

Applications

  • Process and precision instrumentation
  • Pressure and flow rate control devices
  • Actuators speed control
  • Positioning systems
  • Sorting systems
  • Medical equipment
  • Robotics and industrial automation

Materials

  • Body and flanges in Aluminum and PPS
  • Seals in NBR

Matrix valve, series 890

2/2 Function NC

Single valve and manifold version

  • Flowrate              100-1.530 Nl./min.
  • Pressure range    2-8 bar
  • IP Rating              IP62
  • Response time     1 ms
  • Tension                24 VDC; Speed-Up!
  • Life time               >500 million cycles
  • Measurements     from 46x46x41,5 mm
  • Weight                 210 to 320 g (depending on version)

Managing director

Aleksandra Klemenc
Tel. +386 2 673 01 33
akl@inoteh.si

Sales & technical support

Gregor Podlogar
Tel. +386 2 673 01 34
gp@inoteh.si
loading...

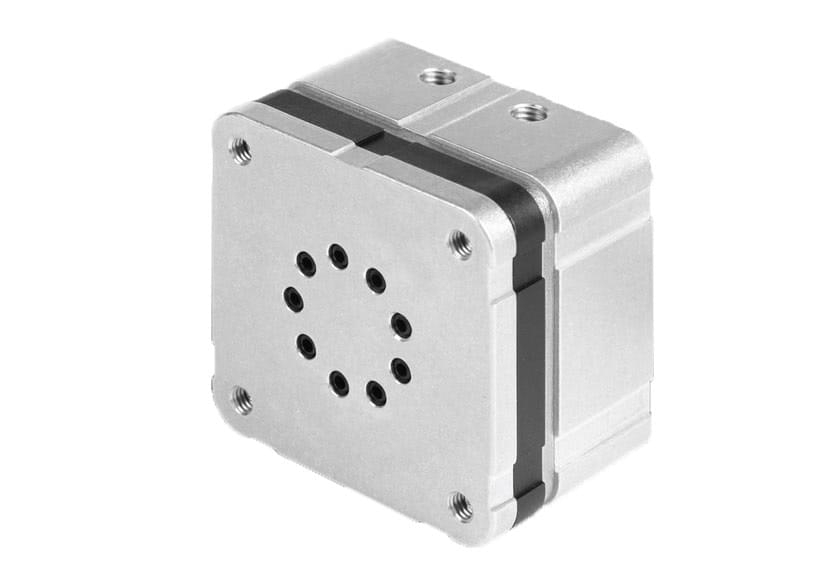

  • Matrix series 890 high speed valve
